 聚氯乙烯絕緣電線電纜
PVC insulated wire and cable
產品標準：Referenc Standards
本產品按 GB5023-1997《額定電壓450/750V及以下聚氯乙烯絕緣電纜》、JB8734-1998《額定電壓450/750V及以下聚氯乙烯絕緣電纜電線和軟線》標準生產，同時還可根據用戶需要按國際電工委員會推薦IEC、英國標準、德國標準及美國標準生產。
The products is manufactured according to the standards of GB5023-1997 and JB8734-1998 or IEC,BS,DIN and ICEA upon request.
適用范圍：Application
本產品分別適用于額定電壓450/750V及以下的動力裝置、固定布線及撓性連接電器之間。
The produces is suitable for power installation fixed wiring or flexible connection for electical appliances with rated voltage up to and including 450/750V respectively.
使用特性：Operation characteristics
額定電壓U。/U為450/750V、300/500和300/300V。
Rated voltage U.450/750V,300/500V and 300/300V.
電纜導體的允許長期電高工作溫度：Max.permissible continuous operation temperature of the conductor:
227IEC07（BV-90）..........................90°C
227IEC08（BV-90）..........................90°C
其它型號 Forother types..........................70°C
電纜敷設時環境溫度應不低于0°C The ambient temperature under installation shall not below 0°C
電纜彎曲半徑：The bending radius of cable.
D25mm..........................4D
D25mm..........................6D
（D-電纜外徑） Diameter of the cable
電纜型號、名稱：Type and name
|
型號Type |
名稱Name |
標準Standards |
|
227IEC01（BV） |
一般用途單芯硬導體無護套電纜
Single-core non-sheathed cable with solid conductor for general purposes |
GB5023-1997
IEC60227-1997 |
|
227IEC02（RV） |
一般用途單芯軟導體無護套電纜
Single-core non-sheathed cable with flexible conductor for general purposes |
|
227IEC05（BV） |
內部布線用導體溫度為70的單芯實心導體無護套電纜
Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70°C |
|
227IEC06（RV） |
內部布線用導體溫度為70的單芯軟導體無護套電纜
Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 70°C |
|
227IEC07（BV-90） |
內部布線用盡可能體溫度為90的單芯實心導體無護套電纜
Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 90°C |
|
227IEC08（RV-90） |
內部布線用導體溫度為90的單芯軟導體無護套電纜
Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90°C |
|
227IEC10（BVV） |
輕型聚氯乙烯護套電纜
light PVC sheathed cable |
|
227IEC42（RVB） |
扁型無護套軟線
Flat non-sheathed flexible cord |
|
227IEC52（RVV） |
輕型聚氯乙烯護套軟線
Light PVC sheathed flexible cord |
|
227IEC53（RVV） |
普通聚氯乙烯護套軟線
Ordinary PVC sheathed flexible cord |
|
227IEC74（RVVYP） |
耐油聚氯乙烯護套屏蔽電纜
Oil-proof PVC sheathed,screened cable |
|
227IEC75（RVVY） |
耐油聚氯慚烯護套非屏蔽軟電纜
Oil-proof PVC shesthed,non-screened flexible cable |
|

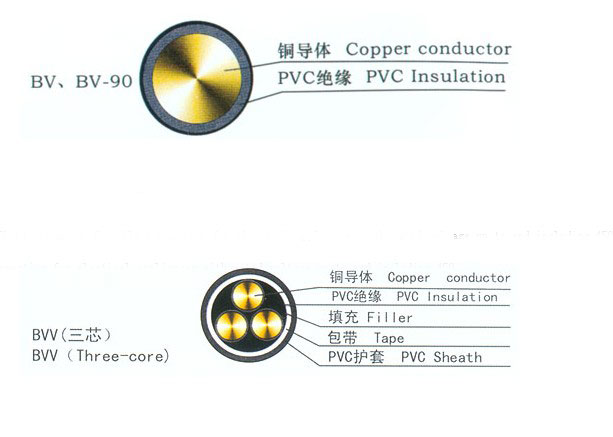

BV |
銅芯聚氯乙烯絕緣電線
Copper conductor PVC indsulated wire |
JB8734-1998 |
|
BLV |
鋁芯聚氯乙烯絕緣電線
Aluminium conductor PVC insulated wire |
|
BVR |
銅芯聚氯乙烯絕緣軟電纜
Copper conductor PVC insulated flexible cable |
|
BVV |
銅芯聚氯乙烯絕緣聚氯乙烯護套圓型電纜
Copper conductor PVC indulated and sheathed round cable |
|
BLVV |
鋁芯聚氯乙烯絕緣聚氯乙烯護套圓型電纜
Aluminium conductor PVC insulated and sheathed round cable |
|
BVVB |
銅芯聚氯乙烯絕緣聚氯乙烯護套扁型電纜
Copper conductoe PVC insulated and sheathed flat cable |
|
BLVVB |
鋁芯聚氯乙烯絕緣聚氯乙烯護套圓型電纜
Aluminium conductoe PVC insulated and sheathed flat cable |
|
RVS |
銅芯聚氯乙烯絕緣絞型連接用軟電線
Copper conductor PVC insulated twisted flexible cord for connection |
|
RVP |
銅芯聚氯乙烯絕緣屏蔽軟電線
Copper conductor PVC insulated screened flexible cord |
|
RVP-90 |
銅芯耐熱90聚氯乙烯絕緣屏蔽軟電線
Copper conductor PVC insulated screened flexible cord for a conductor temperature of 90°C |
|
RVVP |
銅芯聚氯乙烯絕緣屏蔽聚氯乙烯護套軟電纜
Copper conductor PVC insulated and sheathed screened flexible cable | |
