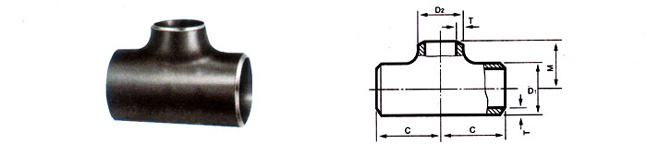

三通...
|
|
| 產品名稱：三通 |
| 產品編號：— |
發布日期：
2009/9/2 |
| 產品產地：— |
產品規格：可根據用戶需求定制 |
| 產品商標：— |
 |
|
|
|
|
|
 |
| |
|
公稱直徑 |
外徑 |
中心距至端面的距離 |
理論重量kg/pcs |
|
DN |
INCH |
D1×D2 |
C |
M |
5S |
10S |
20S |
40S |
80S |
120S |
|
20×20 |
3/4×3/4 |
25×25
26.7×26.7 |
29 |
29 |
0.07
0.08 |
0.10
0.11 |
0.12
0.13 |
0.13
0.15 |
0.16
0.18 |
- |
|
20×15 |
3/4×1/2 |
25×18
26.7×21.3 |
29 |
29 |
0.06
0.07 |
0.09
0.10 |
0.11
0.12 |
0.12
0.13 |
0.15
0.16 |
- |
|
25×25 |
1×1 |
32×32
33.4×33.4 |
38 |
38 |
0.11
0.12 |
0.19
0.20 |
0.21
0.22 |
0.23
0.25 |
0.30
0.32 |
- |
|
25×20 |
1×3/4 |
32×25
33.4×26.7 |
38 |
38 |
0.10
0.11 |
0.18
0.19 |
0.20
0.21 |
0.22
0.24 |
0.28
0.31 |
- |
|
25×15 |
1×1/2 |
32×18
33.4×21.3 |
38 |
38 |
0.09
0.10 |
0.17
0.18 |
0.19
0.20 |
0.21
0.23 |
0.27
0.30 |
- |
|
32×32 |
1.1/4×1.1/4 |
38×38
42.2×42.2 |
48 |
48 |
0.19
0.20 |
0.36
0.39 |
0.39
0.45 |
0.42
0.52 |
0.63
0.73 |
- |
|
32×25 |
1.1/4×1 |
38×18
42.2×33.4 |
48 |
48 |
0.18
0.19 |
0.33
0.35 |
0.37
0.39 |
0.40
0.42 |
0.58
0.68 |
- |
|
32×20 |
1.1/4×3/4 |
38×25
42.2×26.7 |
48 |
48 |
0.17
0.18 |
0.31
0.32 |
0.34
0.36 |
0.38
0.40 |
0.55
0.65 |
- |
|
32×15 |
1.1/4×1/2 |
38×20
42.2×21.3 |
48 |
48 |
0.16
0.17 |
0.30
0.31 |
0.33
0.35 |
0.36
0.38 |
0.52
0.68 |
- |
|
40×40 |
1.1/2×1.1/2 |
45×45
48.3×48.3 |
57 |
57 |
0.35
0.45 |
0.59
0.69 |
0.65
0.76 |
0.78
0.88 |
0.08
1.18 |
- |
|
40×32 |
1.1/2×1.1/4 |
45×38
48.3×42.2 |
57 |
57 |
0.32
0.42 |
0.54
0.65 |
0.63
0.75 |
0.72
0.82 |
0.99
1.09 |
- |
|
40×25 |
1.1/2×1 |
45×32
48.3×33.4 |
57 |
57 |
0.27
0.37 |
0.45
0.65 |
0.52
0.73 |
0.60
0.80 |
0.83
1.03 |
- |
|
40×20 |
1.1/2×3/4 |
45×25
48.3×26.7 |
57 |
57 |
0.26
0.36 |
0.44
0.64 |
0.51
0.66 |
0.58
0.68 |
0.80
1.00 |
- |
|
45×15 |
1.1/2×1/2 |
45×18
48.3×21.3 |
57 |
57 |
0.25
0.35 |
0.42
0.62 |
0.48
0.64 |
0.56
0.66 |
0.78
0.78 |
- |
|
50×50 |
2×2 |
57×57
60.3×60.3 |
64 |
64 |
0.49
0.50 |
1.03
1.05 |
1.11
1.13 |
1.15
1.18 |
1.65
1.67 |
- |
|
50×40 |
2×1.1/2 |
57×45
60.3×48.3 |
64 |
60 |
0.44
0.45 |
0.93
0.95 |
1.01
1.03 |
1.04
1.06 |
1.48
1.50 |
- |
|
50×32 |
2×1.1/4 |
57×38
60.3×42.2 |
64 |
57 |
0.40
0.43 |
0.81
0.89 |
0.88
0.94 |
0.98
1.00 |
1.37
1.42 |
- |
|
50×25 |
2×1 |
57×32
60.3×33.4 |
64 |
51 |
0.39
0.40 |
0.72
0.84 |
0.83
0.88 |
0.92
0.94 |
1.31
1.34 |
- |
|
50×20 |
2×3/4 |
57×25
60.3×26.7 |
64 |
44 |
0.37
0.38 |
0.70
0.80 |
0.77
0.85 |
0.87
0.90 |
1.24
1.27 |
- |
|
65×65 |
2.1/2×2.1/2 |
76×76
73.0×73.0 |
76 |
76 |
0.87
0.86 |
0.21
1.25 |
1.65
1.73 |
2.10
2.12 |
2.80
2.88 |
- |
|
65×50 |
2.1/2×2 |
76×57
73.0×63.0 |
76 |
70 |
0.82
0.81 |
0.17
1.16 |
1.54
1.48 |
2.00
1.98 |
2.74
2.09 |
- |
|
65×40 |
2.1/2×1.1/2 |
76×45
73.0×48.3 |
76 |
67 |
0.77
0.76 |
1.11
1.10 |
1.41
1.38 |
1.89
1.88 |
2.56
2.55 |
- |
|
65×32 |
2.1/2×1.1/4 |
76×38
73.0×42.2 |
76 |
64 |
0.75
0.74 |
1.10
1.08 |
1.35
1.30 |
1.80
1.89 |
2.50
2.25 |
- |
|
65×25 |
2.1×2.1 |
76×32
73.0×33.4 |
76 |
57 |
0.76
0.70 |
1.10
1.07 |
1.34
1.28 |
1.86
1.81 |
2.53
2.08 |
- | |
| |
 |
| |
|
公稱直徑 |
外徑 |
中心距至端面的距離 |
理論重量kg/pcs |
|
DN |
INCH |
D1×D2 |
C |
M |
5S |
10S |
20S |
40S |
80S |
80S |
|
80×80 |
3×3 |
89×89 |
86 |
86 |
1.16 |
1.68 |
2.21 |
3.02 |
4.19 |
|
|
80×65 |
3×2.1/2 |
89×76
88.9×73.0 |
86 |
83 |
1.11
1.10 |
1.62
1.60 |
2.13
2.08 |
2.89
2.87 |
4.02
3.98 |
|
|
80×50 |
3×2 |
89×57
88.9×60.3 |
86 |
76 |
1.06
1.07 |
1.53
1.55 |
2.05
2.10 |
2.76
2.79 |
3.81
3.85 |
|
|
80×40 |
3×1.1/2 |
89×45
88.9×48.3 |
86 |
73 |
1.01
1.03 |
1.49
1.50 |
1.98
2.01 |
2.67
2.67 |
3.70
3.73 |
|
|
80×32 |
3×1.1/4 |
89×38
88.9×42.2 |
86 |
70 |
1.00
1.00 |
1.48
1.45 |
1.95
1.97 |
2.65
2.60 |
3.68
3.60 |
|
|
90×90 |
3.1/2×3.1/2 |
101.6×101.6 |
95 |
95 |
1.33 |
1.92 |
2.53 |
3.61 |
5.08 |
|
|
90×80 |
3.1/2×3 |
101.6×88.9 |
95 |
92 |
1.26 |
1.82 |
2.41 |
3.43 |
4.83 |
|
|
90×65 |
3.1/2×2.1/2 |
101.6×73 |
95 |
89 |
1.22 |
1.76 |
2.35 |
3.32 |
4.67 |
|
|
90×50 |
3.1/2×2 |
101.6×60.3 |
95 |
83 |
1.20 |
1.73 |
2.31 |
3.25 |
4.57 |
|
|
90×40 |
3.1/2×1.1/2 |
101.6×48.3 |
95 |
79 |
1.17 |
1.70 |
2.26 |
3.21 |
4.51 |
|
|
100×100 |
4×4 |
108×108
114.3×114.3 |
105 |
105 |
1.66
1.75 |
2.41
2.54 |
3.02
3.26 |
4.75
5.01 |
6.75
7.12 |
8.78
9.26 |
|
100×90 |
4×3.1/2 |
114.3×101.6 |
105 |
102 |
1.70 |
2.46 |
3.19 |
4.85 |
6.89 |
8.96 |
|
100×80 |
4×3 |
108×89
114.3×88.9 |
105 |
98 |
1.55
1.61 |
2.24
2.33 |
3.16
3.21 |
4.42
4.60 |
6.27
6.52 |
8.15
8.48 |
|
100×65 |
4×2.1/2 |
108×76
114.3×73.0 |
105 |
95 |
1.53
1.60 |
2.21
2.31 |
3.09
3.11 |
4.36
4.56 |
6.20
6.50 |
8.45
8.45 |
|
100×50 |
4×2 |
108×57
114.3×60.3 |
105 |
89 |
1.51
1.57 |
2.19
2.29 |
3.08
3.19 |
4.32
4.41 |
6.13
6.12 |
7.97
9.26 |
|
100×40 |
4×1.1/2 |
108×45
114.3×48.3 |
105 |
86 |
1.50
1.55 |
2.09
2.24 |
2.92
3.19 |
4.22
4.00 |
6.06
6.04 |
7.88
9.11 |
|
125×125 |
5×5 |
133×133
141.3×141.3 |
124 |
124 |
3.18
3.37 |
3.91
4.14 |
6.17
6.31 |
7.53
7.98 |
10.9
11.6 |
16.4
15.4 |
|
125×100 |
5×4 |
133×108
141.3×114.3 |
124 |
117 |
3.03
3.15 |
3.73
3.90 |
5.76
5.91 |
7.20
7.52 |
10.4
10.8 |
13.9
14.5 |
|
125×90 |
5×3.1/2 |
141.3×101.6 |
124 |
114 |
3.09 |
3.83 |
5.83 |
7.39 |
10.6 |
14.2 |
|
125×80 |
5×3 |
133×89
141.3×88.9 |
124 |
111 |
2.90
3.02 |
3.59
3.74 |
5.42
5.71 |
6.92
7.21 |
10.0
10.4 |
13.3
13.8 |
|
125×65 |
5×2.1/2 |
133×76
141.3×73.0 |
124 |
108 |
2.85
3.00 |
3.59
3.73 |
5.40
5.71 |
6.92
7.20 |
10.0
10.4 |
13.3
13.8 |
|
125×50 |
5×2 |
133×57
141.3×60.3 |
124 |
105 |
2.80
3.92 |
3.58
3.73 |
5.38
5.70 |
6.90
7.20 |
10.0
10.4 |
13.3
13.8 |
|
150×150 |
6×6 |
159×159
168.3×168.3 |
143 |
143 |
4.09
4.32 |
5.03
5.31 |
8.91
9.10 |
10.5
11.1 |
16.2
17.1 |
21.0
22.2 |
|
150×125 |
6×5 |
159×133
168.3×141.3 |
143 |
137 |
3.84
4.13 |
4.73
5.08 |
8.33
9.01 |
9.88
10.6 |
15.2
16.3 |
19.8
21.3 |
|
150×100 |
6×4 |
159×108
168.3×114.3 |
143 |
130 |
3.76
3.95 |
4.64
4.87 |
8.21
8.55 |
9.70
10.2 |
14.9
15.6 |
19.3
20.3 |
|
150×90 |
6×3.1/2 |
168.3×101.6 |
143 |
127 |
3.91 |
4.82 |
8.46 |
10.1 |
15.5 |
20.1 |
|
150×80 |
6×3 |
159×89
168.3×88.9 |
143 |
124 |
3.72
3.93 |
4.56
4.82 |
8.06
8.43 |
9.56
10.0 |
14.7
15.3 |
19.0
20.2 |
|
150×65 |
6×2.1/2 |
159×76
168.3×73.0 |
143 |
121 |
3.70
3.81 |
4.51
4.72 |
7.93
8.33 |
9.51
10.0 |
14.6
15.2 |
19.2
20.0 | |
| | , |
|
|
|
|
|
|
|
|
|
